092625 Euchner Safety Switches
Part#:092625
Alt. Part#:NX1-2121A-M
Manufacturer:Euchner
Category:Safety Switches
Product Lifecycle:Active
Product description
092625 Euchner - Safety switch NX, cable entry M20 x 1.5
Product Details
- Weight 0.97223742 lb
- Series NX
- Product Class Safety switch
- Overtravel 1 mm
- Switching current 1 mA
- B10D 4,5 x 10⁶
- Connection cross-section 0,34 ... 1,5 mm²
- Rated impulse withstand voltage Uimp 2,5 kV
- Switching voltage 12 V
- Rated insulation voltage Ui 250 V
- Thermal rated current Ith 4 A
- Short circuit protection according to IEC 60269-1 4A gG
- Utilization category acc. to EN 60947-5-1 4A 230V
- Retention force 10 N
- Extraction force 50 N
- Actuating force 40 N
- Insertion depth 32 mm
- Approach speed max.20 m/min
- Actuation frequency max.1200 1/h
- Housing material Die-cast alloy cathodically dipped
- Weight 0,4 kg
- Connection M20 x 1.5
- Degree of protection IP67
- Mechanical life 2 x 10⁶
- Number of door position positively driven contacts 4
- Switching principle Slow-action switching contact
- Contact material Silver alloy, gold flashed
- Installation orientation Any
- Ambient temperature -20 ... 80 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 092625 on MQ Automation is $203.97. Order now.
About the product

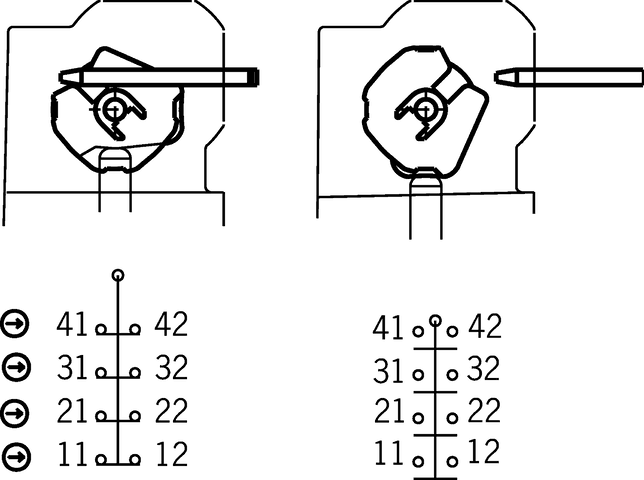

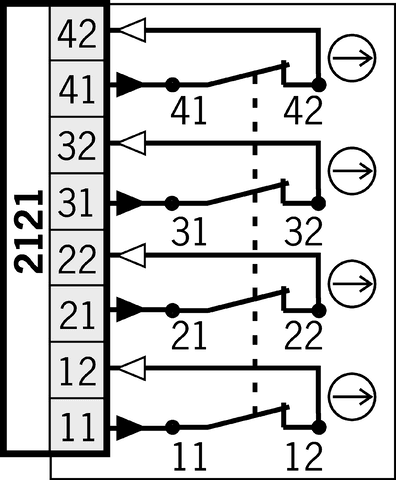

3x cable entry M20 x 1.5;4 positively driven, positively driven contacts
